| 产品特性：高精度 | 品牌：MSE | 型号：MSE-V508 |
| 传感器类型：光电测速仪 | 电源电压：12-30 V DC | 特性：高精度 |
| 工作温度：0 °C … 50 °C | 安装类型：一体式安装 | 最小包装数：1 |
| 种类：光电测速仪 |

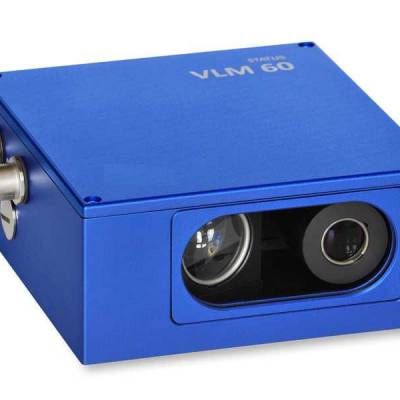

MSE-V60 Sensor for Speed and Length
The non-contact optical MSE-V60 is a modern speed and length measuring device in a robust aluminum IP65 housing. An automatically controlled white light LED illuminates the surface of the measuring object. The reflected light is projected onto the optical track image sensor by the integrated precision optics. The movement of the measurement object is measured in this way by means of a correlation method. The speed is detected bidirectionally in both the x and y directions.
The MSE-V60 can be used as a direct replacement for measuring wheels or other rotary encoder applications. The built-in TTL incremental output holds two pulse phases for each of the two directions of movement. There is an optionally Ethernet based fieldbus interface available. Thanks to the flexible installation position, the small dimensions and the short working distance of 100mm, the MSE-V60 can be integrated easily into a wide variety of installations.
Technical Data
Working distance and tolerance | 100 卤 10 mm |
Measurement uncertainty 1) | < 1 % |
Reproducibility 1) | < 1 % |
Working principle | Correlation |
Illumination | White light LED (life span > 5 years, exchangeable) |
Supply voltage (Vsup) | 12 鈥� 30 V DC |
Power consumption | < 7 W |
Temperature range | 0 掳C 鈥� 50 掳C |
Protection level | IP 65 |
EMC | Conformity according IEC 61326-1:2020 |
Weight, dimensions | ca. 1,45 kg, 132 mm x 140 mm x 60 mm (without connectors) |
Programming interface | USB, for parameter adjustment and software updates |
I/O signals | Status output (Vsup- 1 V, 100 mA max., short circuit proof)
Trigger input (10 鈥� 30 V, 3 mA max., opto- ***lated) |
Incremental output (Encoder) | per direction of movement two phases (A/B, 90掳)
5V TTL, output frequency max. 1 MHz, max. 100 mA per phase |
Fieldbus interface (optional) | Ethernet (FBFE), Profinet IO (FBPN), Ethernet/IP (FBEI) |
Scope of delivery | MSE-V60, data cable, positioning aid, USB memory with documentation and software, printed manual |
1) DIN 1319 / *** 3534, of measured length, test conditions: measuring length 10 m, constant conditions in: temperature (20 掳C), distance, velocity, illumination.
